Key Facts
Battery
- Battery Voltage48VDC
PV Input (Mode: MPPT)
- MPPT Operating Voltage Range60VDC - 450VDC
- PV Startup Voltage80VDC
- Max PV Open-Circuit Voltage500VDC
- Max PV Charging Current160A
- Max Grid Charging Current160A
- Max Charging Current (PV + Grid)160A
AC Output
- Power (Max Current)12 kW
- Surge Power24kVA
- Output Voltage220 / 230 / 240v
- Power Factor (PF)1
- Output Frequency (Hz)50 / 60+0.1%
- Transfer Time (ms)10 / 20
AC Input
- Input Voltage; Mode220 / 230 / 240v ;L+N+PE
- Input Voltage Range90~280 ; 170~280
- Frequency Range50Hz / 60Hz
Physical Parameters
- Protection RatingIP54
- Dimensions (L/W/D)570(L)x570(W)x190(D)mm
- Package Dimensions (L/W/D)655(L)x650(W)x250(D)mm
19 technical values are shown above, extracted from the official WEIMU datasheet of this model. Product images and additional items are displayed on the interactive product page.
Product Overview

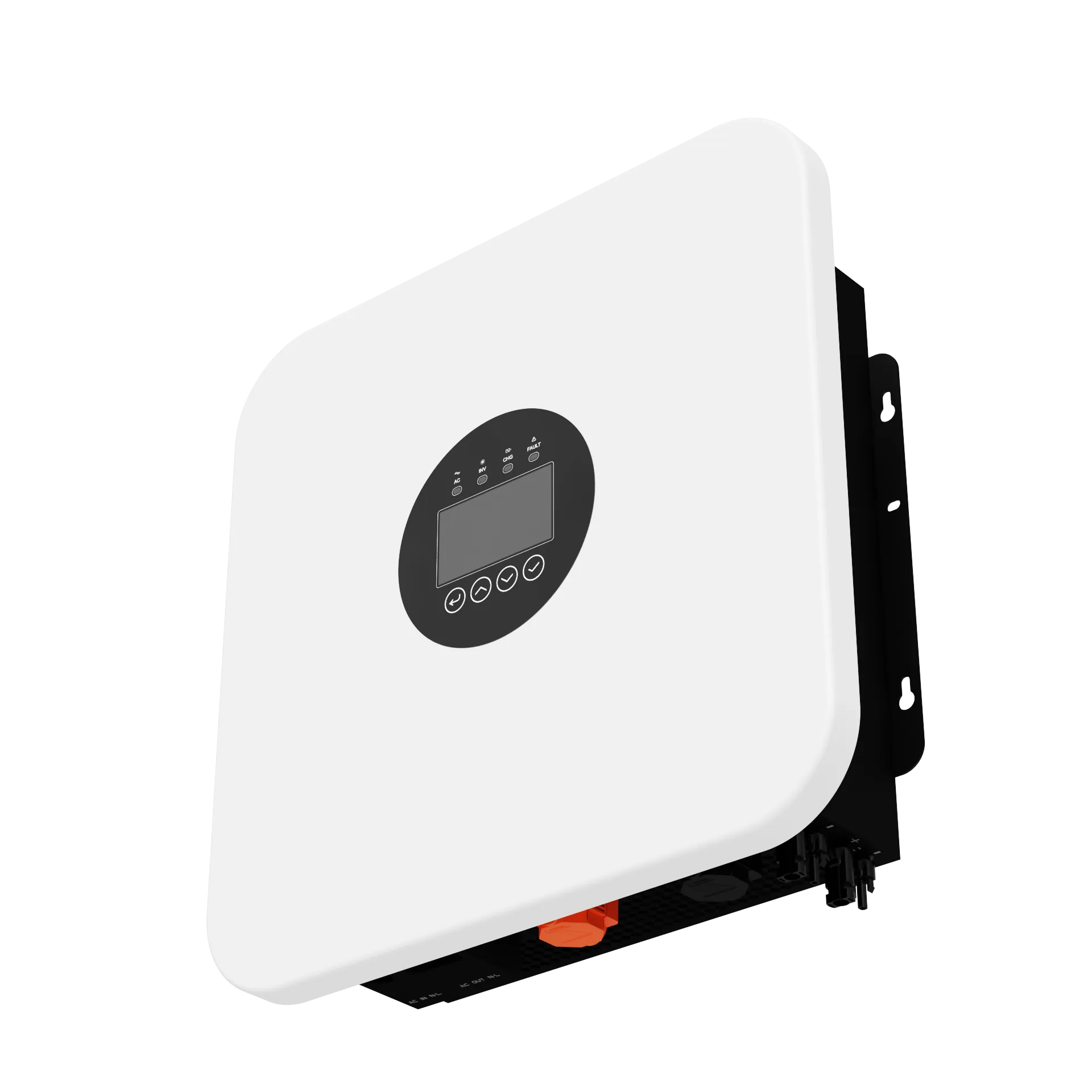

12KU(10/11/12KW)-48V is a Hybrid Inverter from the KU Series (IP21) range in WEIMU's Inverters portfolio. Engineered for home and light-commercial solar systems: off-grid, grid-tied and hybrid solar-plus-storage power, self-consumption, peak shaving and backup power, this model is designed to deliver dependable performance in real-world installations.
At a glance, the key specifications of 12KU(10/11/12KW)-48V include: Battery Voltage 48VDC; MPPT Operating Voltage Range 60VDC - 450VDC; PV Startup Voltage 80VDC; Max PV Open-Circuit Voltage 500VDC; Max PV Charging Current 160A; Max Grid Charging Current 160A; Max Charging Current (PV + Grid) 160A; Power (Max Current) 12 kW.
The full English specification table below lists every measurement that could be verified from the official Chinese datasheet, including electrical ratings, mechanical dimensions and protection parameters.
Like every WEIMU product, 12KU(10/11/12KW)-48V goes through factory-level quality control before shipment. WEIMU supports worldwide export with bilingual (English/Chinese) documentation, after-sales technical support, and flexible OEM/ODM cooperation for distributors, installers and system integrators.
To request the full datasheet, quotation or lead time for 12KU(10/11/12KW)-48V, please contact our sales team — we typically respond within one business day.
